GigMix 4-1 MAX Four Channel Mini Digital Mixer
26900
GigMix 4-1 MAX Four Channel Mini Digital Mixer
26900

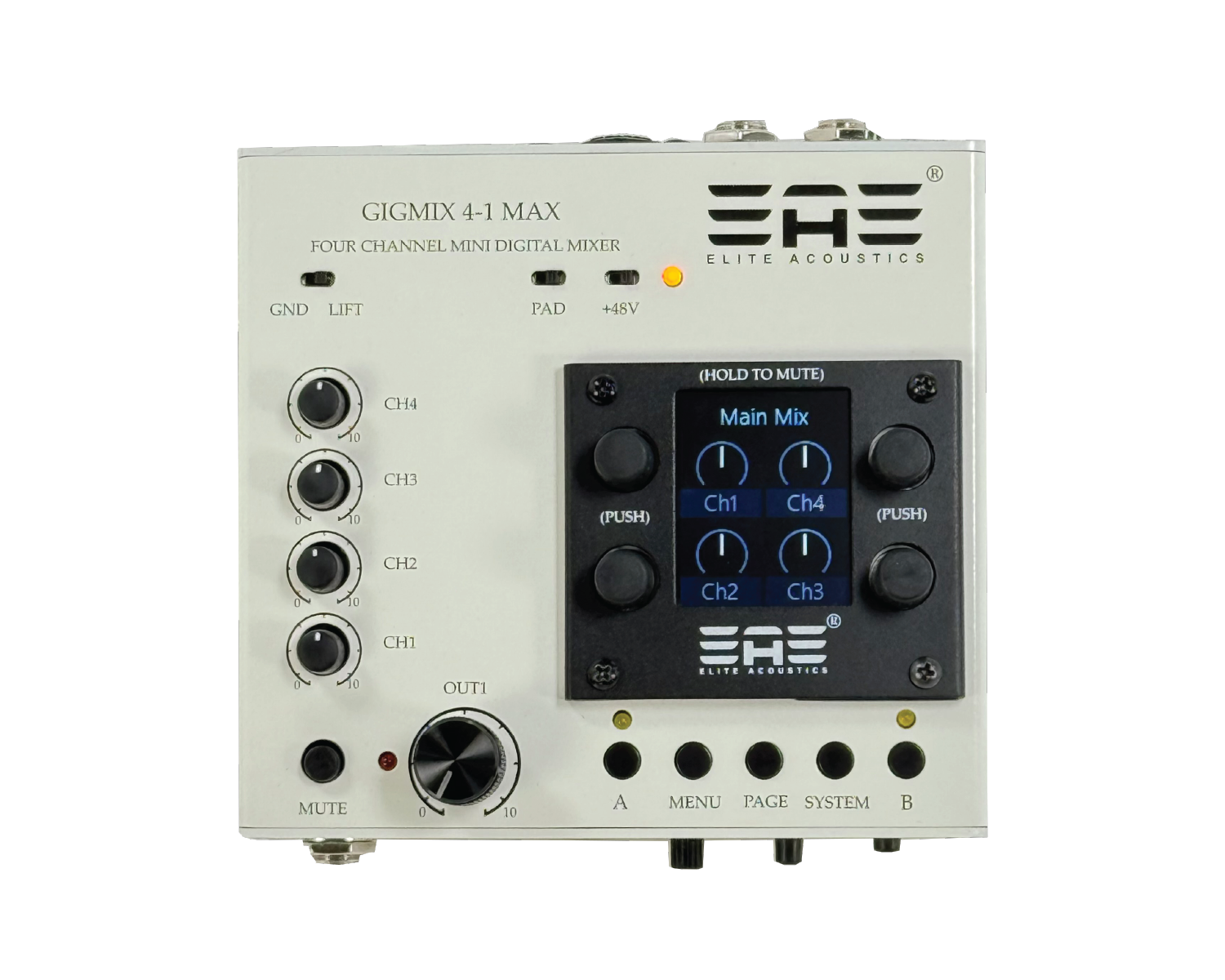

GigMix 4-1 MAX mini Digital mixer, porting the engine from the StompMix 4, the GigMix 4-1 MAX is built with a powerful 32-bit 100Mhz DSP engine and a compact lightweight pocket size package. The GigMix 4-1 MAX mini digital mixer offers a full featured, highly intuitive four channels Digital Mixer with a Color Display. 4 effects level control for Reverb and Shimmer. Assignable Delay effects. The DSP engine provides a compressor, Gate, Mid sweepable EQ, Highpass Filter, Notch Filter, Phase reverse to each of the 4 inputs. Analog inputs consisted of 1 Class A solid-state Mic pre-amps and three 1/4″ TS line/Instrument inputs. Two sets of stereo Mix outputs are selectable between a 1/4″ TRS jack and 2 XLR jacks with output level control knob . 2 assignable switches. 10 Memory for easy recall and set up. Mic Stand mounting accessory is also available. The size/functionalities of the Gigmix 4-1 MAX mini digital mixer makes it the great pocket live gig mixer to your guitar/vocal setup.
Microphone Stand Mounting Hardware is sold separately.
GigMix 4-1 MAX Features
- 4-Channel Mini Digital Mixer

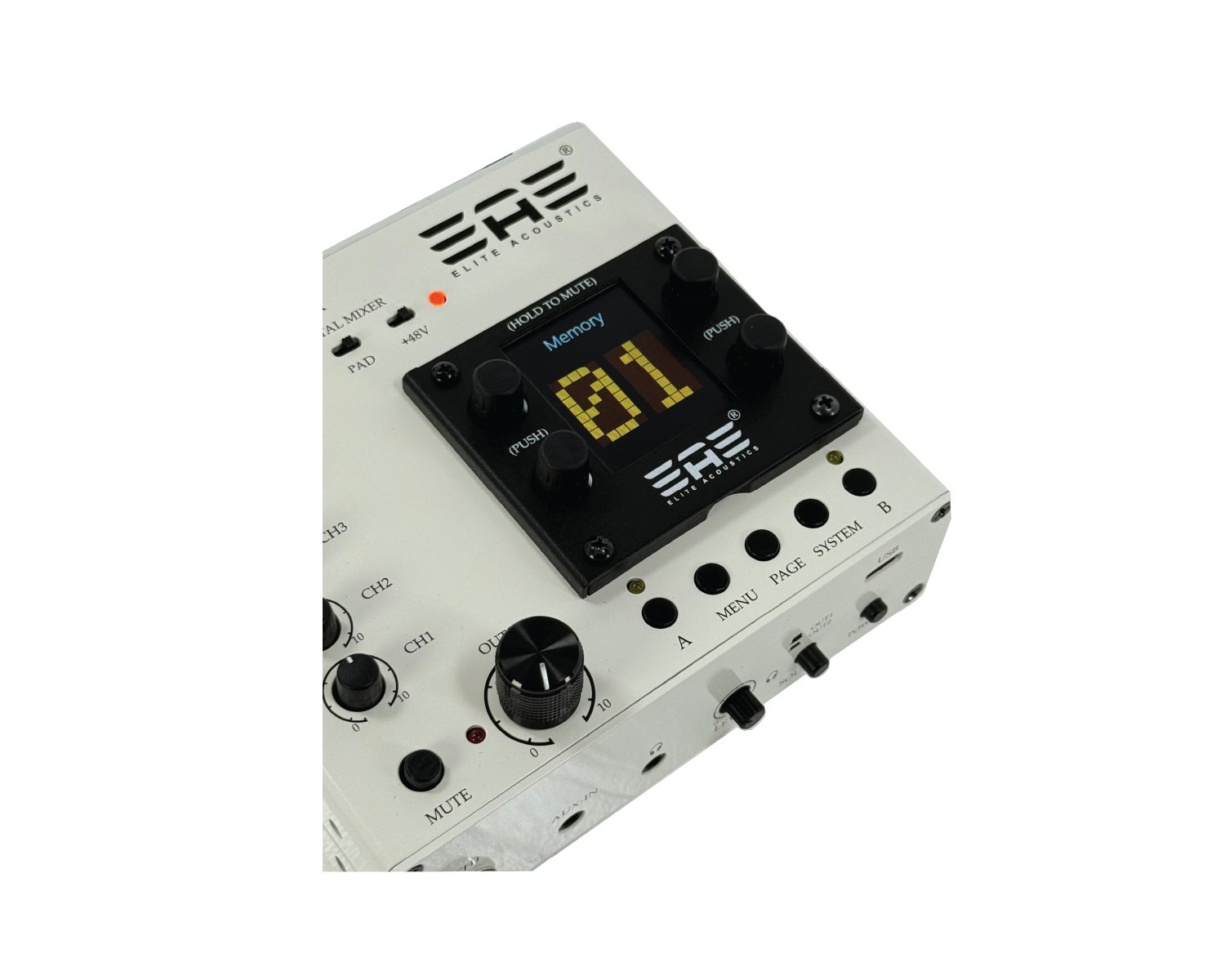

- 10 user scene memories.
- Color display
- Input Level Monitoring
- 1 Class-A Mic inputs with TRIM (CHAN 2) with +48V and PAD
- 3 LINE/INSRT inputs with Level Control(CHAN 1, 3 and 4)

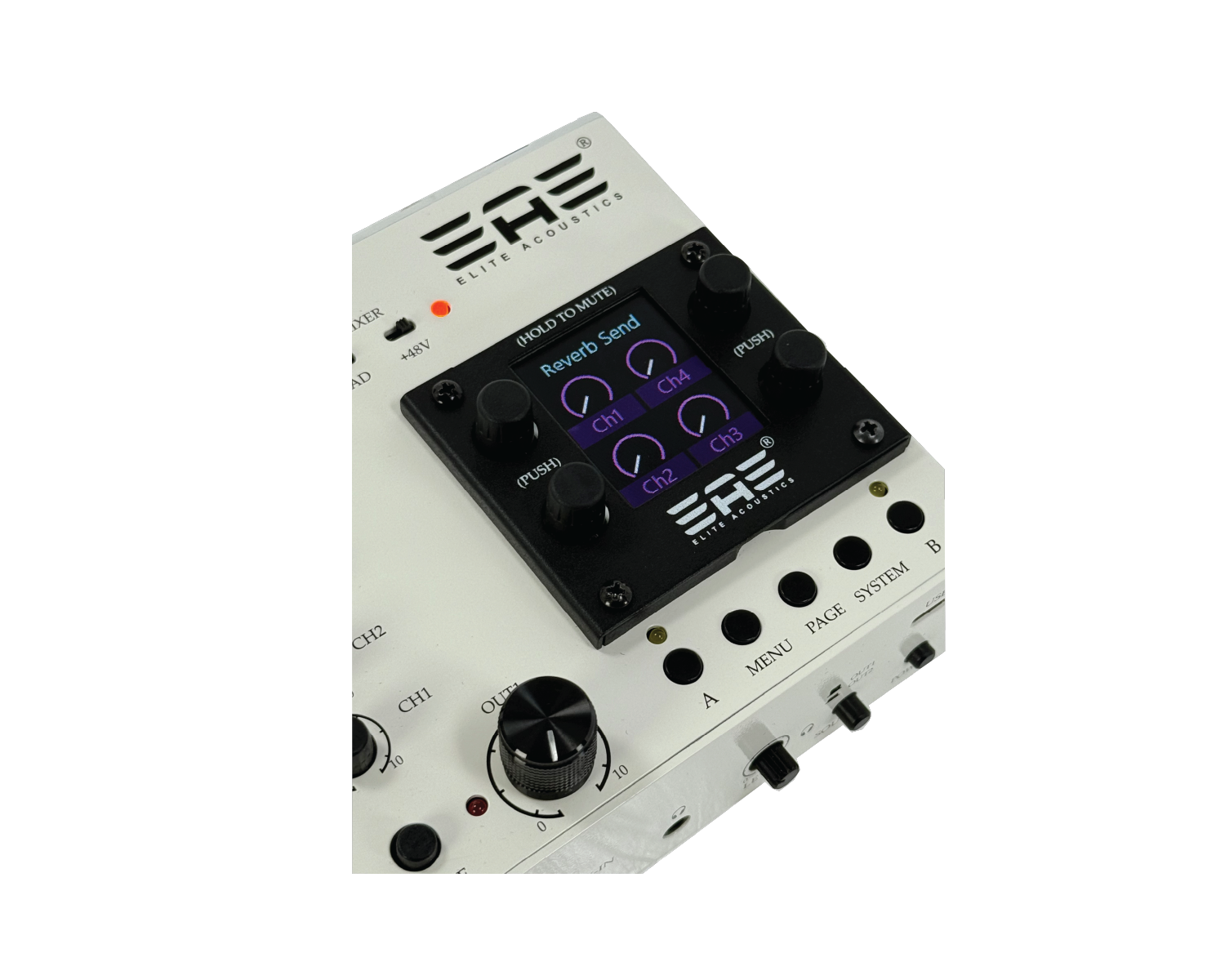

- Independent Reverb, Shimmer effect on each channel
- 2 notch filter available on each channel
- High Pass Filter and Phase Reverse on each channel
- Noise Gate and Compressor on each channel
- 3 Band EQ with Sweepable MID on each channel

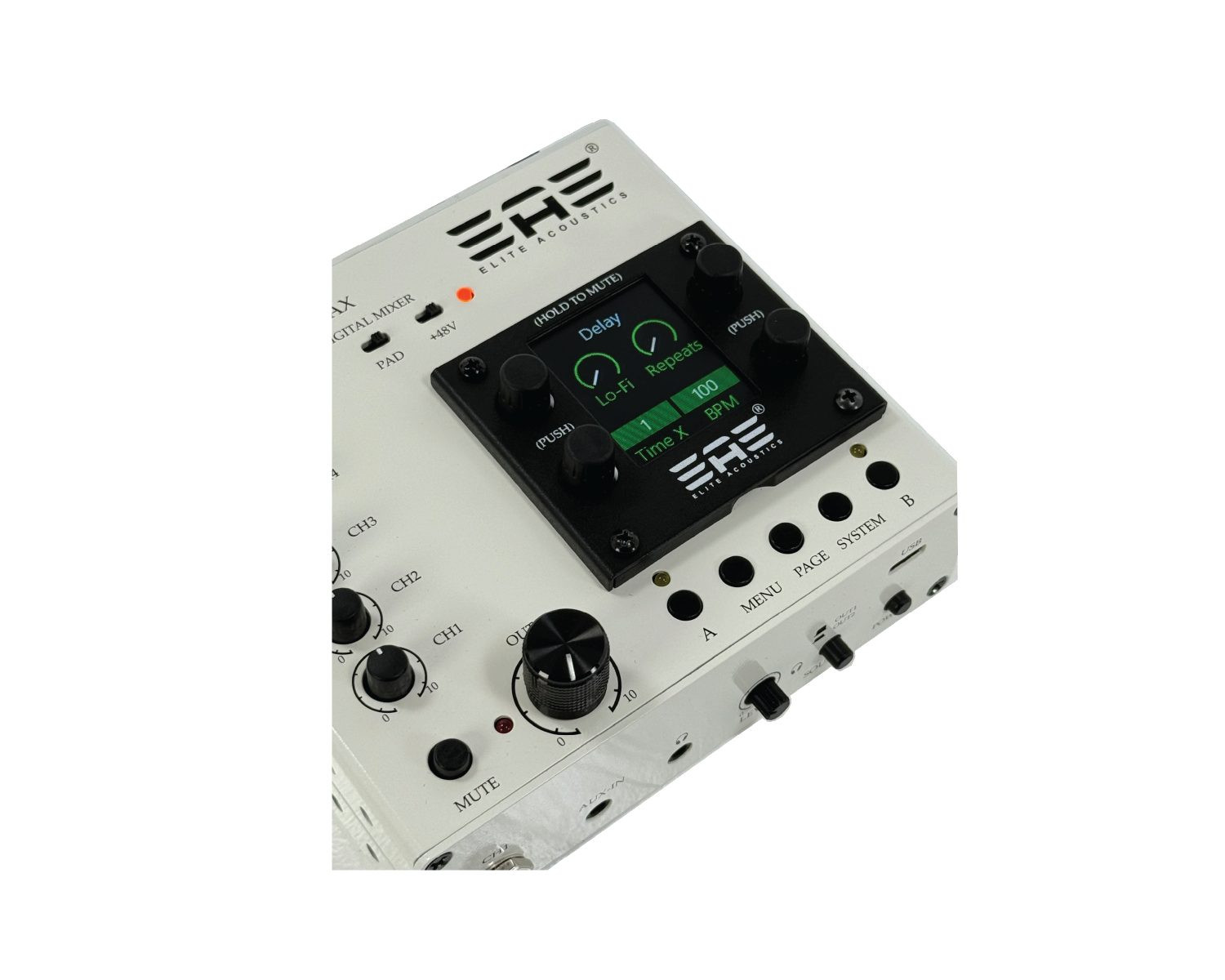

- Max 1 second Delay with Tap Tempo (assign to one Channel at a time)
- Assignable A/B switch functions (MUTE channels, EFX by-pass, Tap Tempo, Scene change etc)

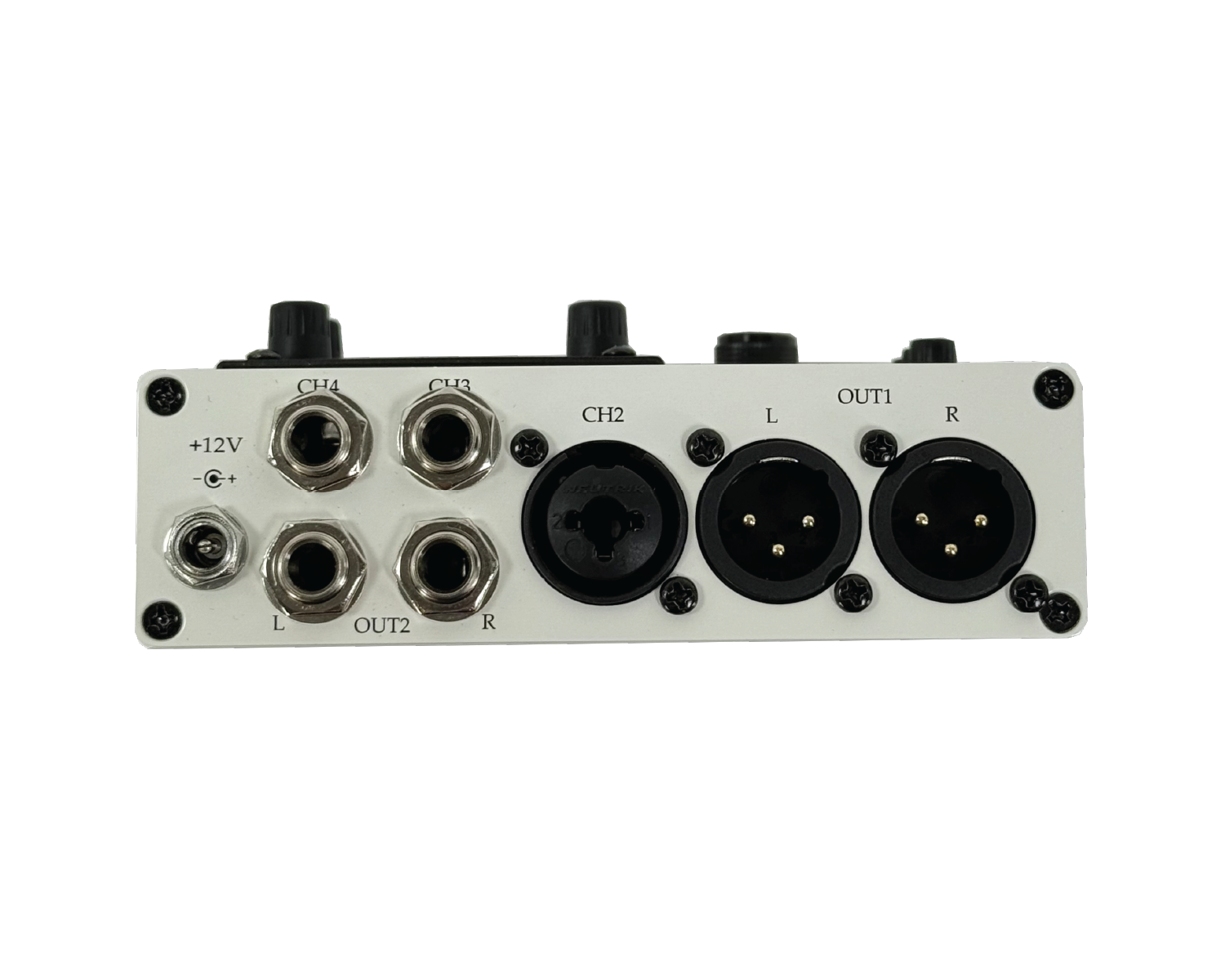

- Output 1 (L/R XLR jacks) – Balanced – with Level Control and MUTE and GND LIFT
- Output 2 (L/R TRS 1/4″ jack)

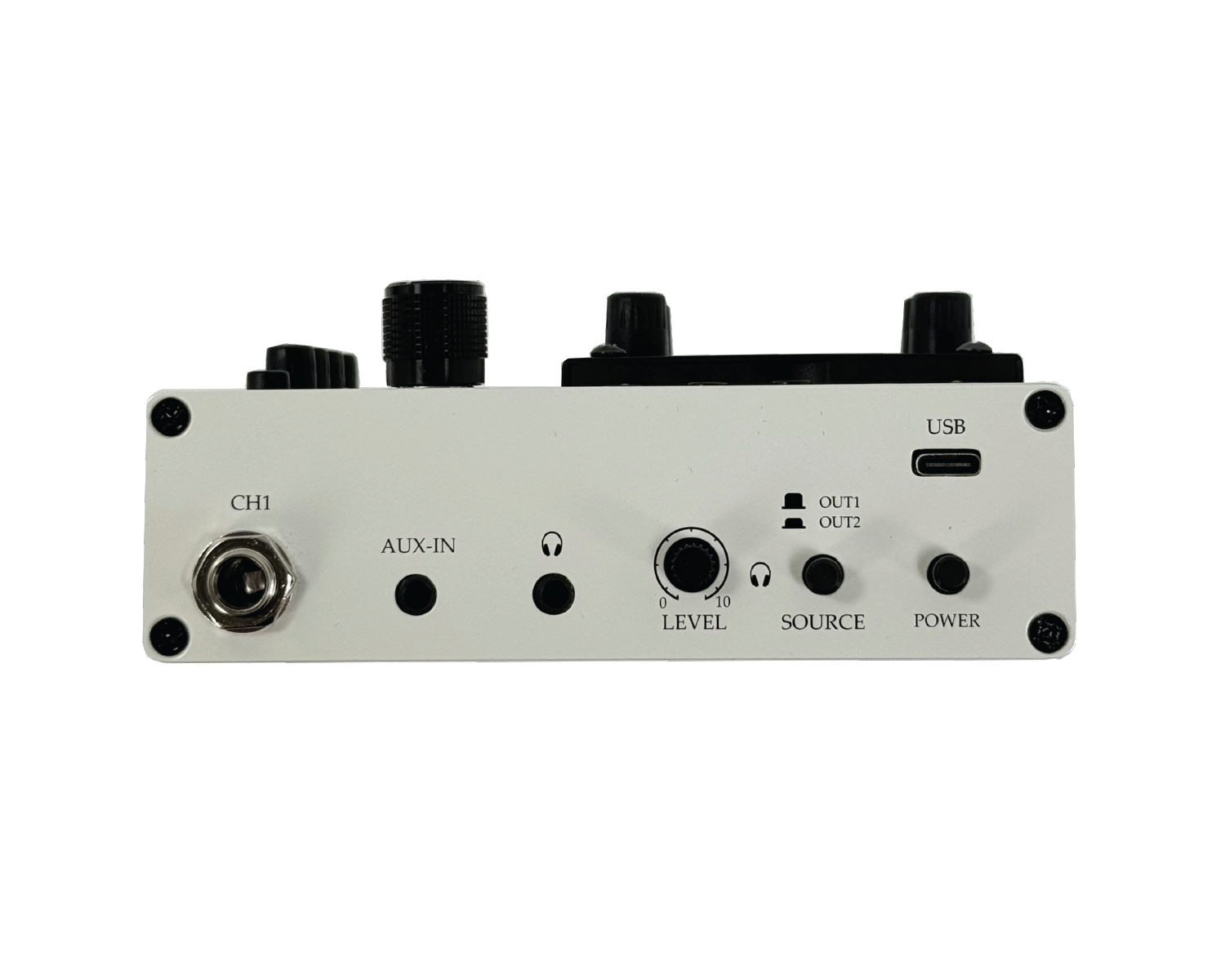

- Headphone Output (Selectable “Out1 or Out2” with Level Control)
- 1/8″ Stereo AUX input.

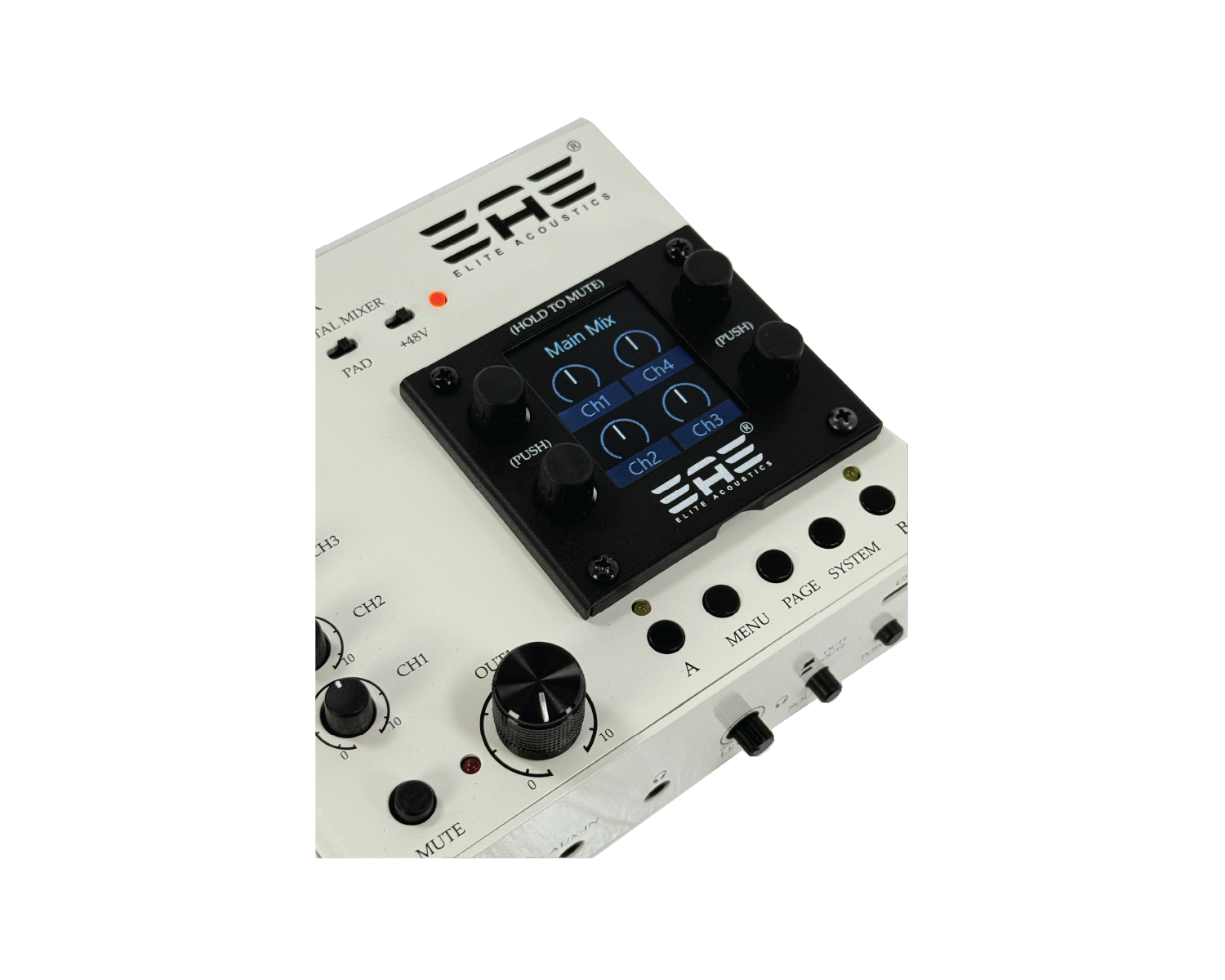

- Main MIX and AUX MIX
- Scenes Change – via A/B switches
- Metal chassis
- Power Switch

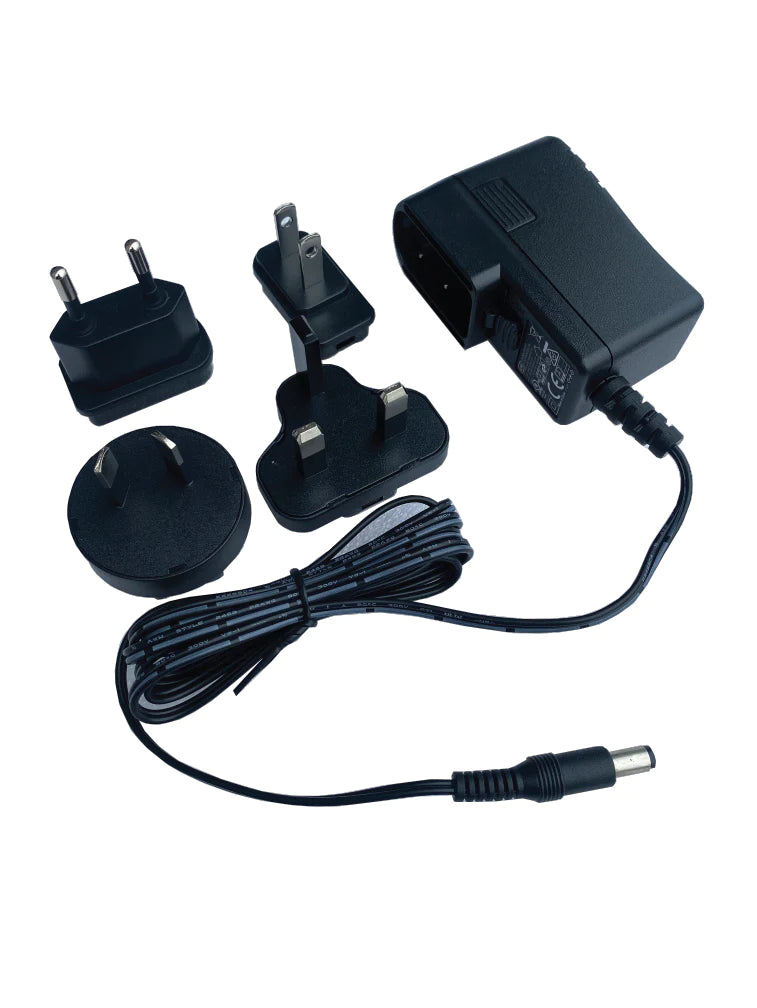

- AC/DC power supply included
- 12VDC power inputs (500mA, 2.1mm *Center Positive*)
- Designed and assembled in USA
